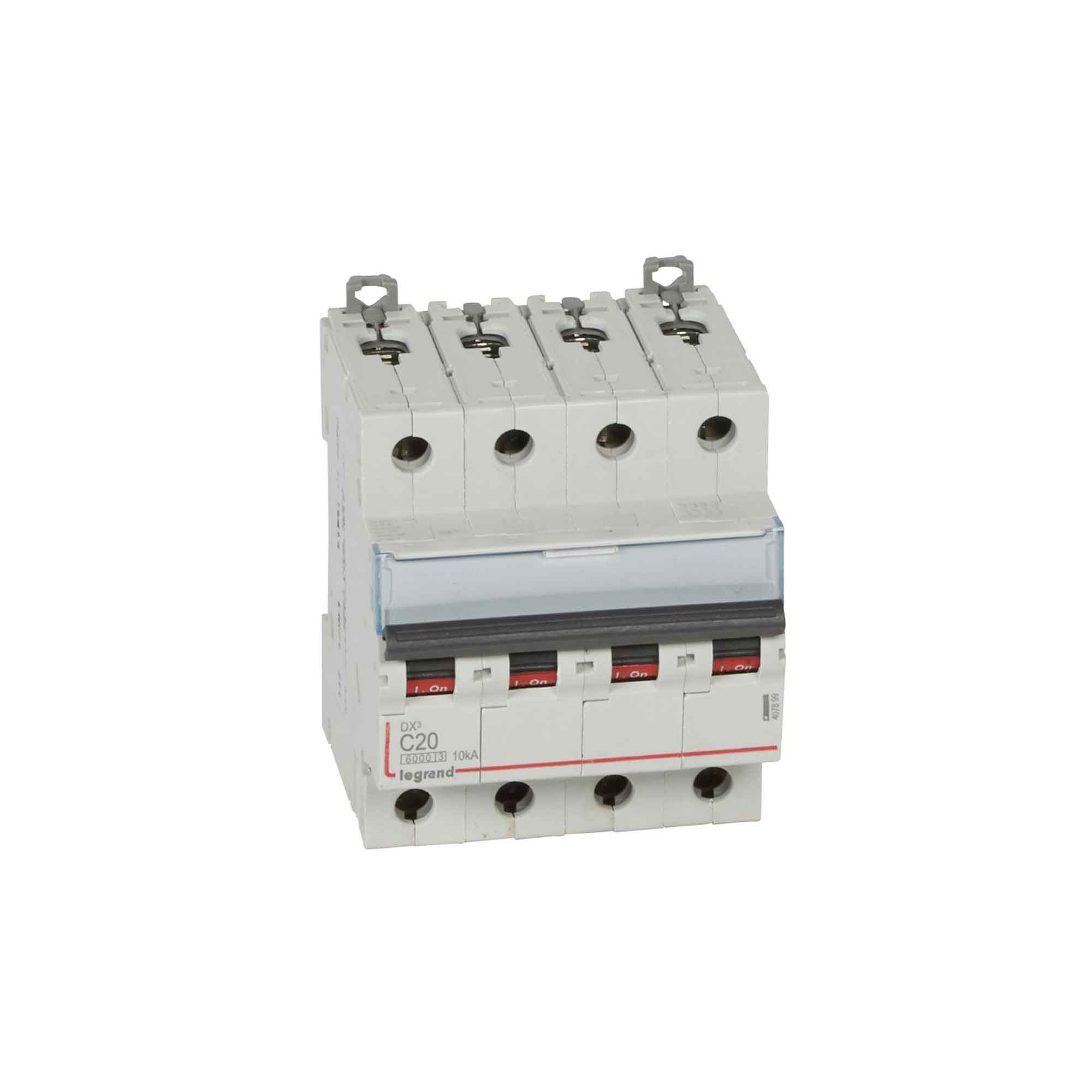

Legrand circuit breaker for 11kW charging station

The Legrand 407899 circuit breaker is specially designed to protect 11 kW charging stations. It guarantees safe and sustainable charging of electric vehicles at home or in the workplace.

• It protects your equipment against the risks of overheating, short circuit and fire.
• In the event of an overload or electrical problem, it automatically shuts off the power to prevent damage to your charging station or its wiring.
• DX³6000 10kA Magneto-Thermal Circuit Breaker, top inlet and bottom outlet, screw type, 4P 400V~ - 20A - curve C - for traditional HX³ comb.

__SEP__

Description

Circuit breaker for 11 kW terminal

This 20A circuit breaker requires a dedicated line, i.e. a separate electrical installation, with a cable of at least 2.5 mm² cross-section.

Equipped with a screw terminal block, this circuit breaker adapts to all types of electrical panel.

To ensure full compliance with French electrical safety standards, adding a Type F residual current device (RCD), such as the Legrand 410533, is essential. This additional circuit breaker block protects against current leaks and guarantees maximum safety.

__SEP__

Features

Characteristics of the DX³6000 10kA 4P 20A - AC - Legrand circuit breaker

• DX³ four-pole circuit breaker 400V~ breaking capacity:
  - 6000A compliant with standard NF EN 60891-1
  - 400V~ for residential installations
  - 10kA in accordance with standard EN 60947-2
  - 400V~
• Departure protection: high inlet and low outlet via screw terminals
• Nominal intensity 20A - Curve C (magnetic triggering 7In +/- 20%) - 4 modules
• For traditional four-pole HX³ comb or traditional wiring
• Receives DX³ auxiliaries and accessories and accepts adaptable differential blocks - IP20 touch-protected terminals, wired device
