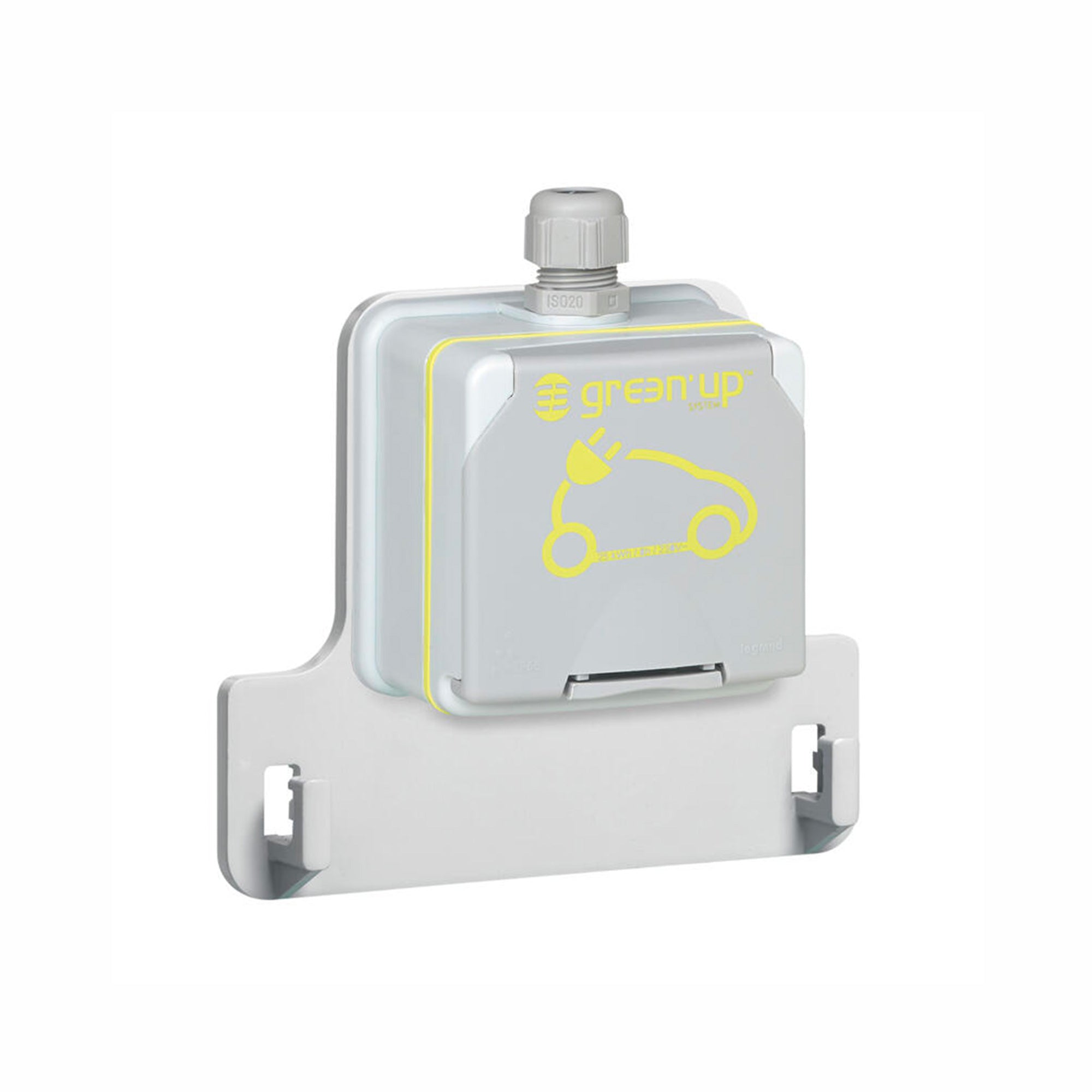

Ready-to-install charging socket
The Green'up Access socket is ready to install and allows for faster charging of your vehicle at home or at your workplace with this complete pack featuring the Legrand patented socket, which includes:

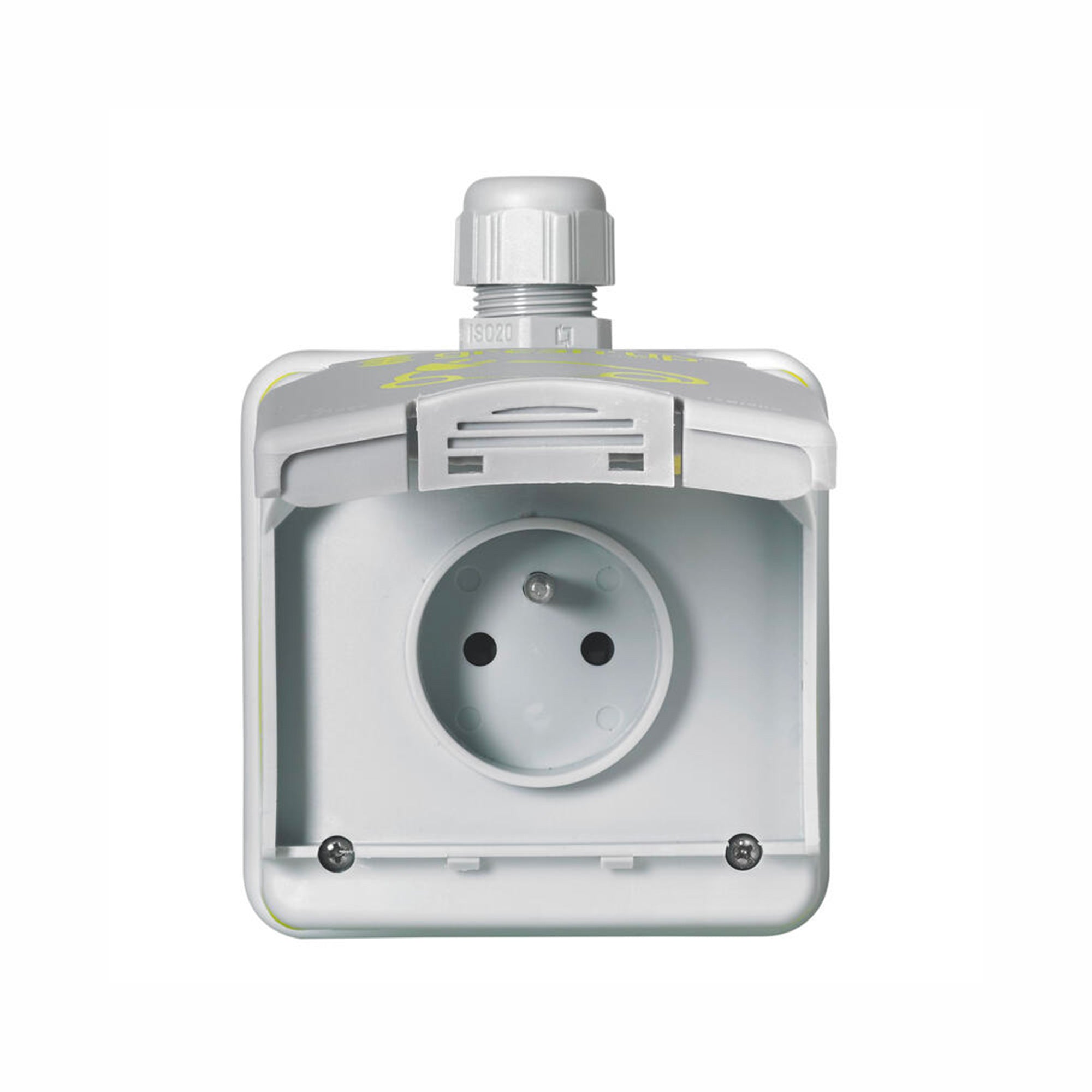

- a reinforced Green'Up socket (surface-mounted) with shutter, IP66 - IK08 - 16A - 230V approved for 16A electric vehicle
- a suspension hook for the charging cable control box
- a 20A differential circuit breaker - C curve - 30mA - type F (formerly Hpi)
Green'up Access socket, connection capacity of 6mm², compliant with IEC 60884-1 and NF C 61-314 standards
Connection from the electrical panel via 1 dedicated line of at least 3x2.5mm² (1 line per socket) with protection by the supplied differential circuit breaker.

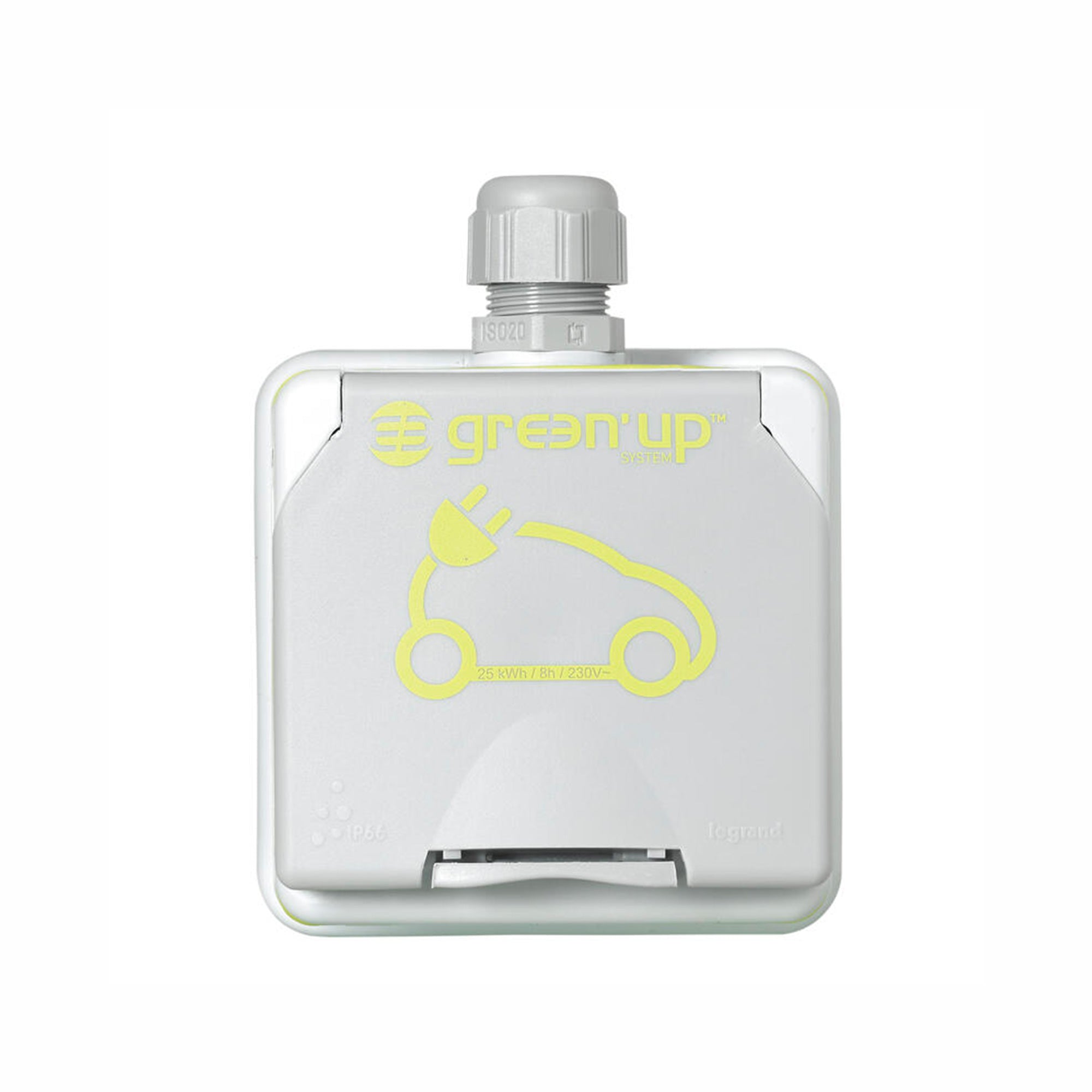

The Green'up socket for electric and plug-in hybrid vehicles
Charge your vehicle safely and comfortably at home or at work with the Green'Up Access 3.7kW (16A) socket. Specifically designed for Green'up charging cables, this reinforced socket allows for faster charging of electric and plug-in hybrid vehicles equipped with a Type 1 or Type 2 connector.
For your comfort and secure charging, this Green'up Access ready-to-install pack allows for a safe installation.
Technical specification of the Ready-to-install Green'up Access for electric vehicle, surface-mounted socket outlet with hook and differential circuit breaker - 3.7kW
| Max. power |
3,7 kW 16A (single-phase) |
| EV connector |
Compatible with Green'up Type 1 and Type 2 charging cable |
| Connection type | 16A (compatible with French standard electrical installation) |
| IP rating |
IP66/IK08 |
| Operating temperature |
-20 to +40°C |
| Dimensions |
18 x 14,7 x 7,3 cm |
| Weight |
0,940kg |
| Made in |
France |
| Warranty |
2 years |
| Reference |
090476 |
