cable de recharge 16a pour voiture type 2 Duosida
chargeur 16A voiture electrique
cable pour prise de recharge 16a duosida

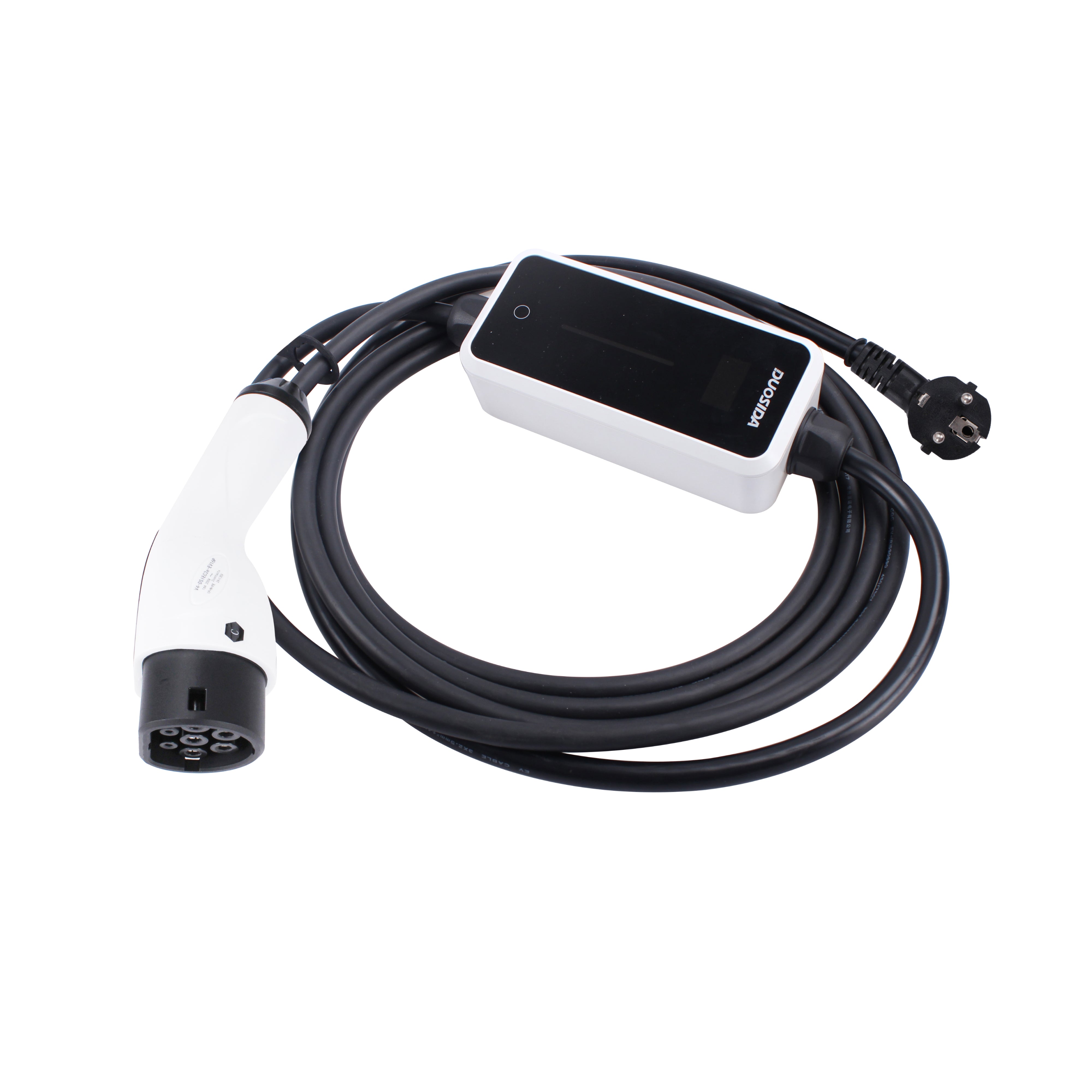

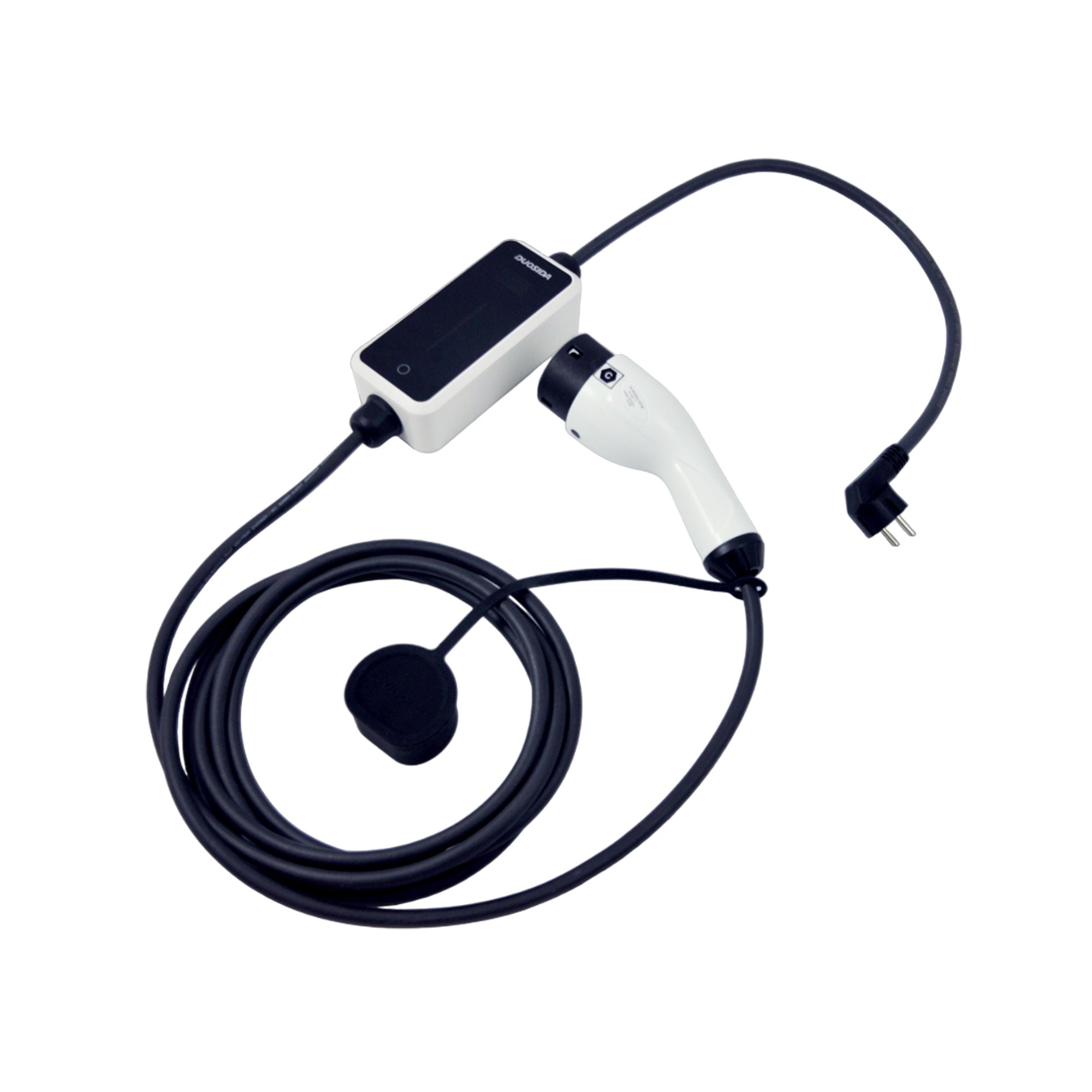

Type 2 cable for 16A charging socket - 3.7 kW

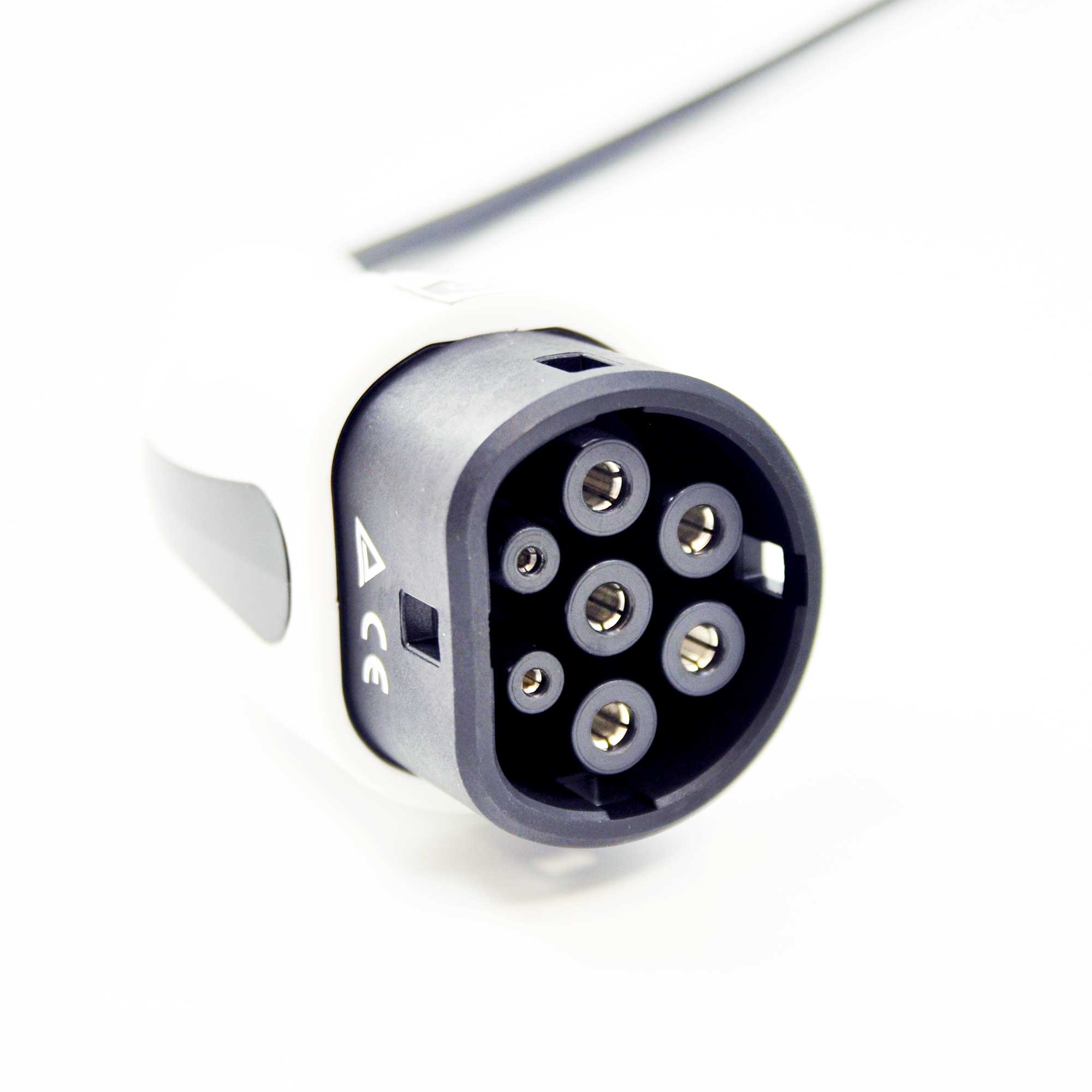

cable type 2 mode 2

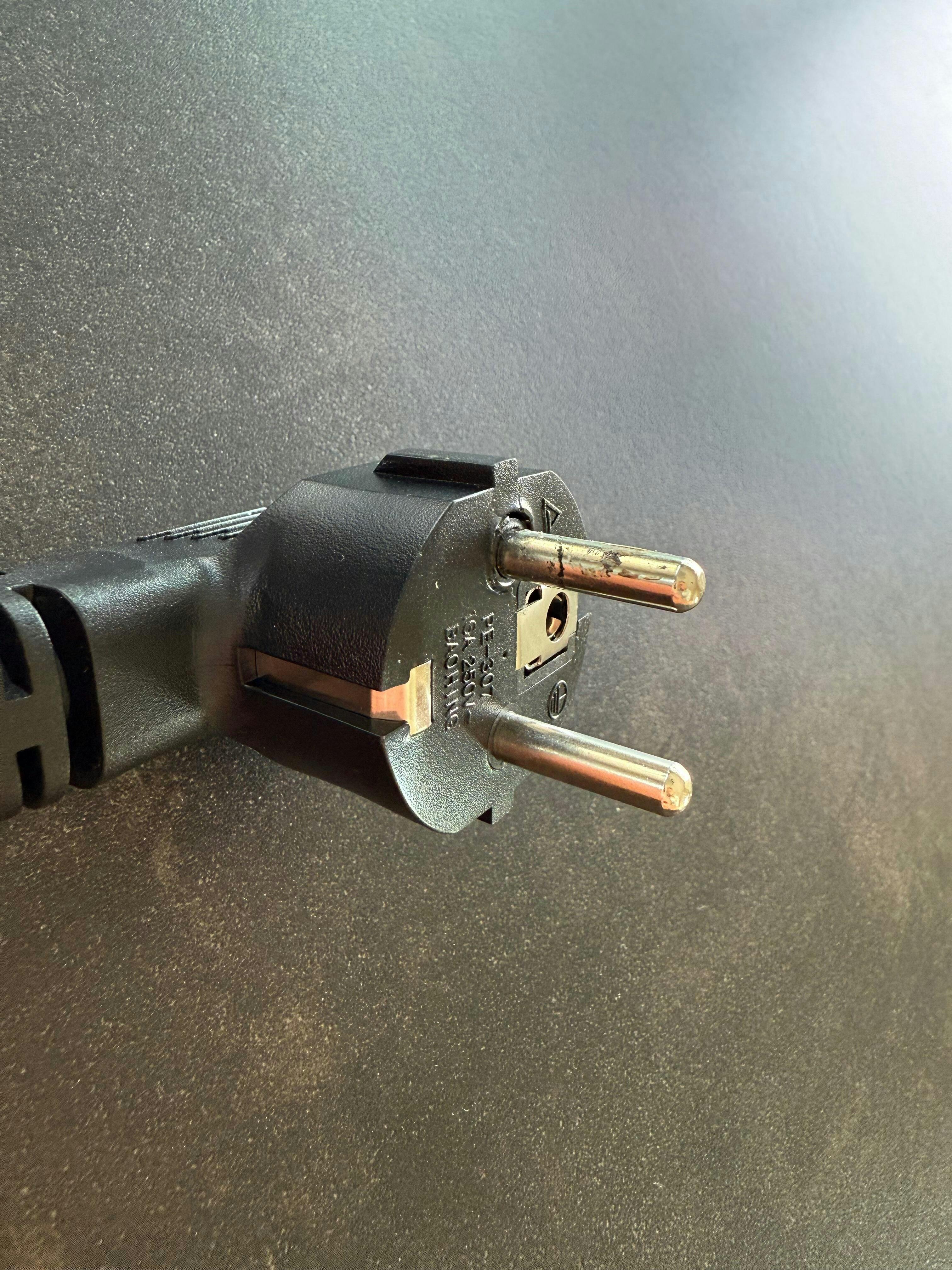

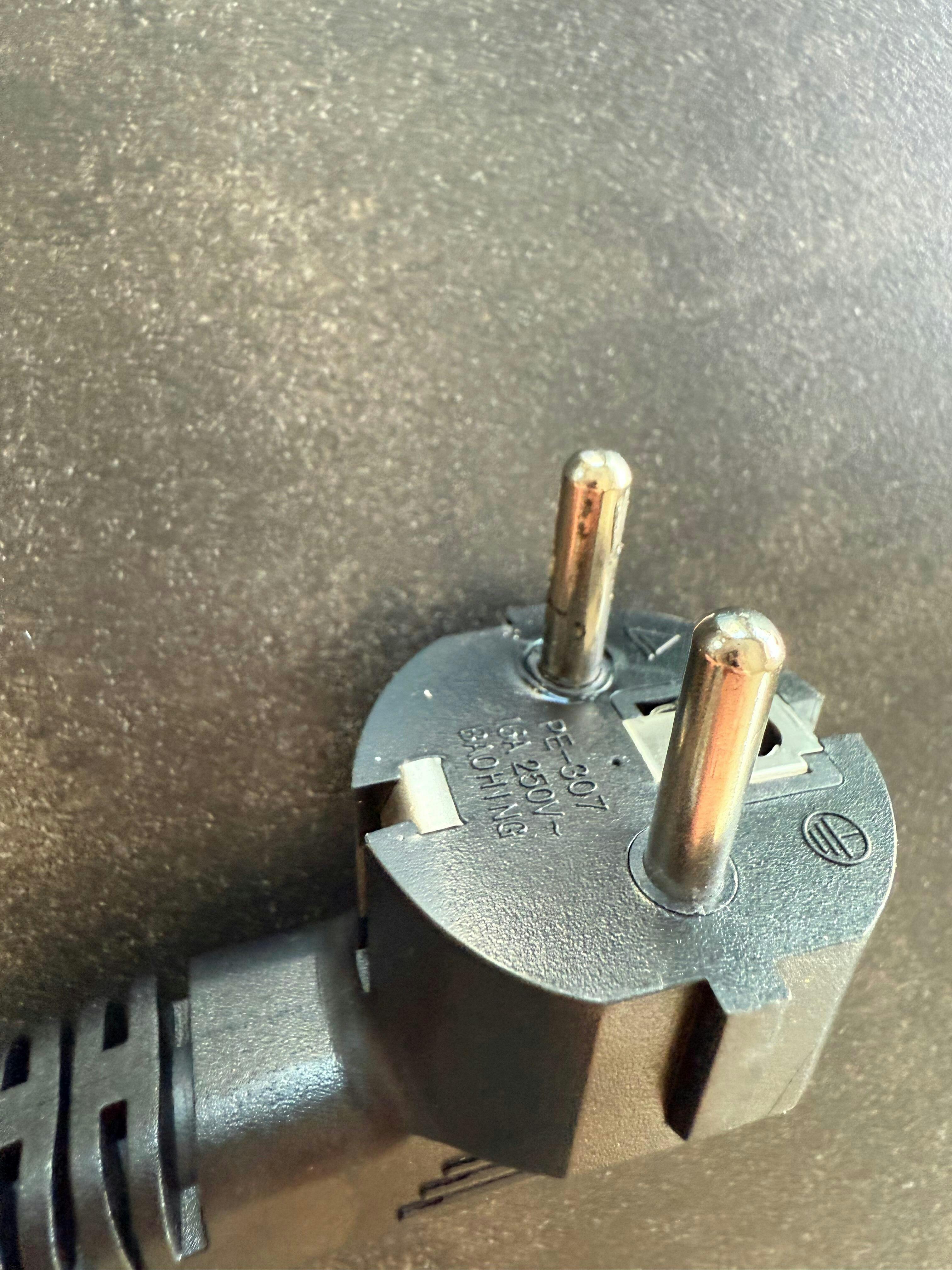

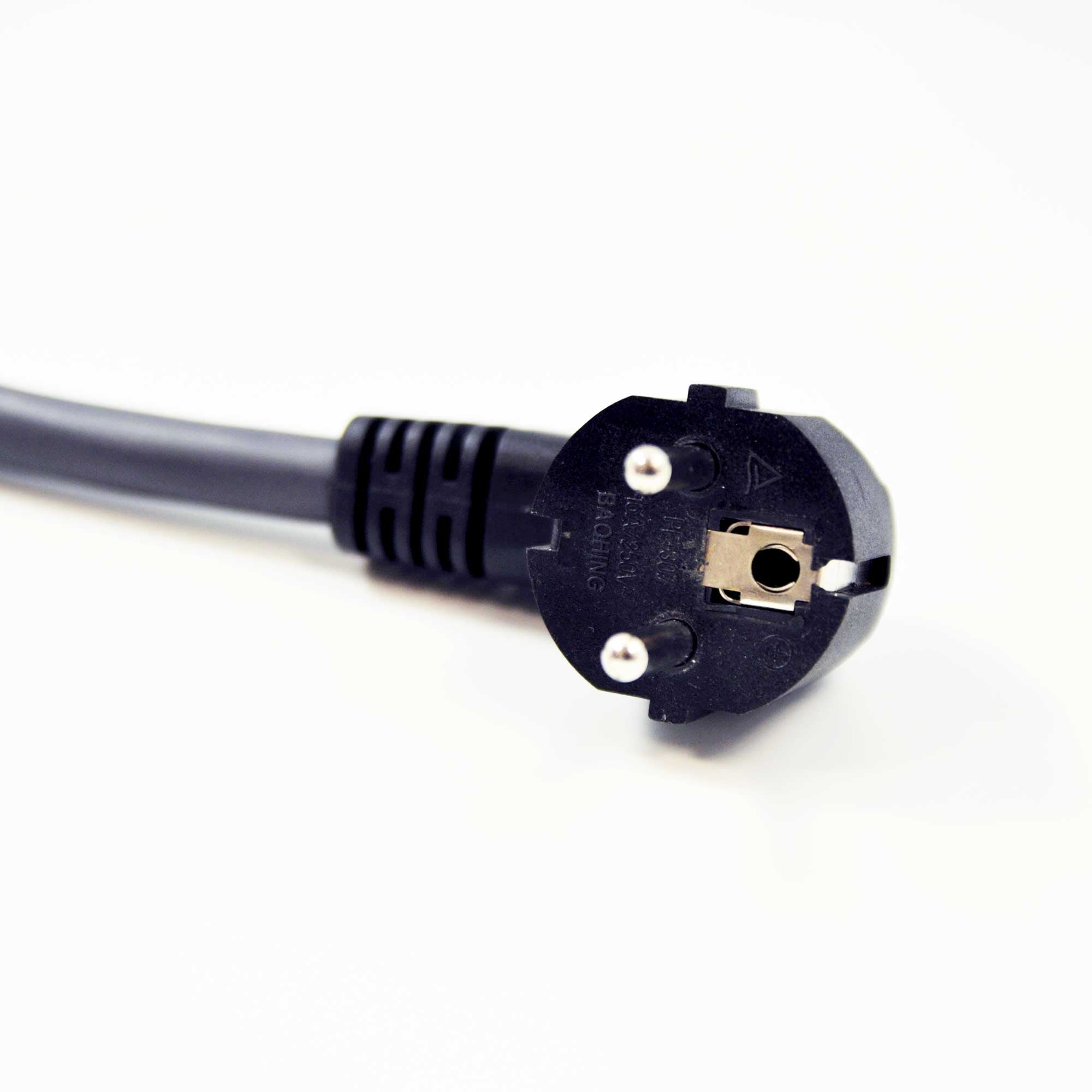

cable mode 2 prise schuko

Type 2 cable for 16A charging socket - 3.7 kW

239,00 € Tax included. Regular price
/

Discover the cable for 16A charging sockets (3.7 kW) and for domestic power sockets outlet (2.3 kW) with power management for secure charging.

  • Charge at 6A/8A/10A/13A/16A depending on the socket you connect your vehicle to.

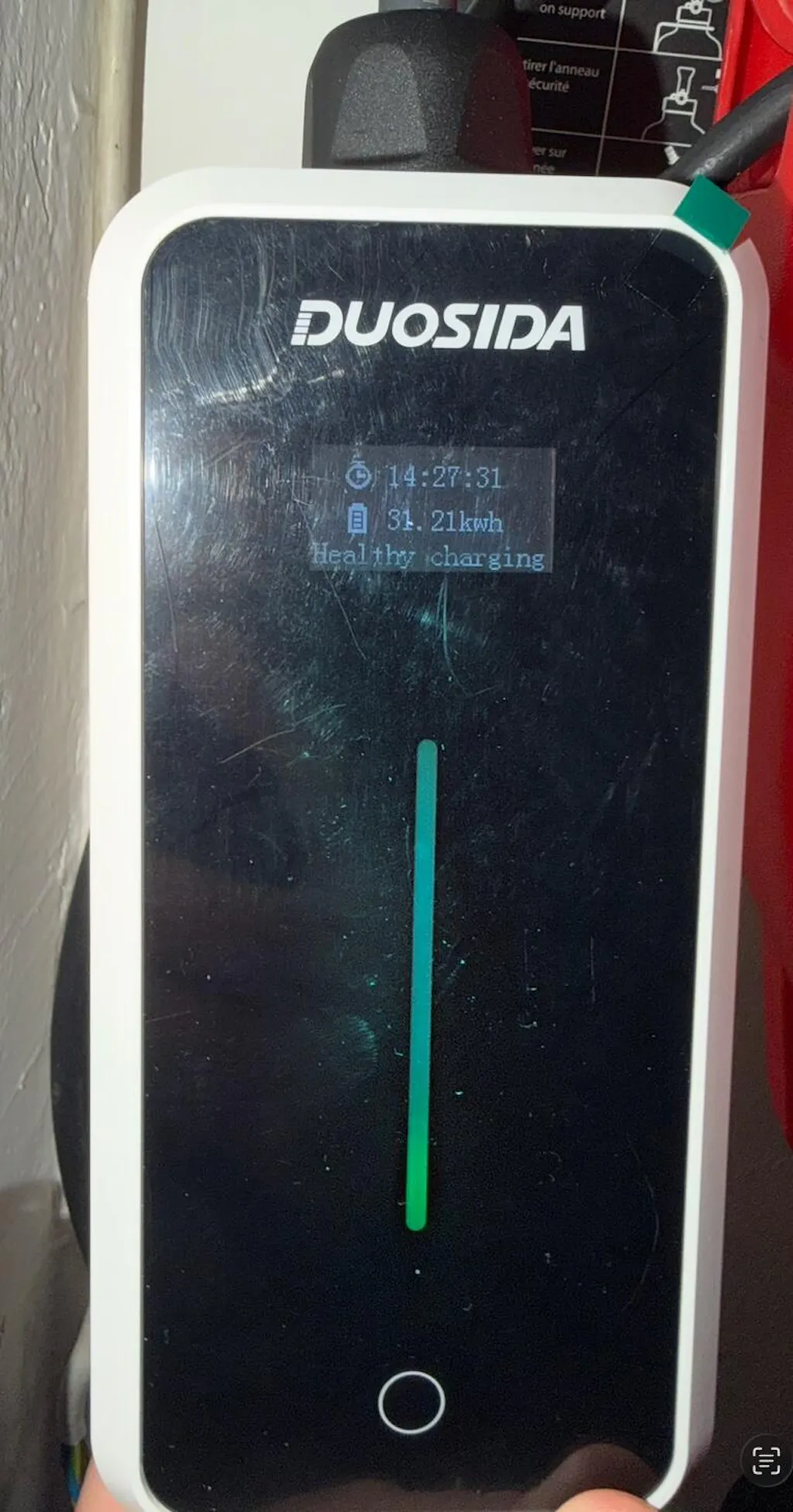

  • OLED screen to monitor the charging process.
  • Thermal protection against overheating.
  • Programmable delayed start for charging.
  • Socket compliant with IEC 62196-2 standard and control unit in accordance with IEC 62752 standard.
  • Included transport bag
How to choose the right cable length?

Guide to choosing the right charging cable length


The measurements given correspond to the distance between the end of one connector to the end of the other connector.

Are you hesitating about what cable length to go for? Don’t panic, our cable length guide is here to help you purchase the right cable for you.

What is the standard cable length for an electric car?

The most common cable length for EVs is 5 metres. The 5m cable is the standard length for cables provided by carmakers when you purchase your EV. This length is appropriate for most electric city cars and sedans, but may be too short for larger categories of cars.

How to choose the right cable length for my EV?

The 2m cable is recommended for two-wheeled vehicles. This is the perfect length to plug an electric motorcycle into charging points and then stash the cable away in a transport bag.

The 5m cable is recommended for smaller vehicles in the electric city car and sedan range.

The 7m cable is recommended for large EVs such as SUVs, estate cars and people carriers.

To choose the right cable length for your vehicle, you might find it useful to check out the table of cables lengths recommended according to vehicle type:

  2m 3m 4m 5m 6m 7m 8m
Motorcycle
City car, sedan
SUV, people carrier, estate car
Utility vehicle, van



  9m 10m 11m 12m 13m 14m 15m
Motorcycle
City car, sedan
SUV, people carrier, estate car
Utility vehicle, van



The ✅ included in the table above indicate the optimal cable length for each vehicle category.

How can I avoid opting for a cable that’s too short?



To make sure you have a cable that’s long enough to cope with all situations, we recommend that you purchase a charging cable of a minimum length of 7 meters for your electric car.





If you are purchasing a cable for home charging, you can measure the length between the charging port on your car and the charging point and then add 2 metres so that the cable is not stressed during charging.

Is it just as fast to charge your EV with a long cable?

Yes, charging using a 15-metre cable will be just as fast as with a 2-metre cable. Mister EV’s custom-built cables are manufactured up to a maximum length of 15 metres for full-on charging in all safety.

Opting for a long charging cable is far safer than charging your EV using an extension cord.


For further information, you can also consult our Guide to purchasing a charging cable.





Complete your order

  • Shipping between 13 and 17 May 2024
  • Payment in 3 times without fees

You are a professional? Ask for a personal quote

The Mode 2 charging cable for electric cars

Charge your EV at the power provided by your socket, thanks to its amperage adjustment system accessible from its OLED screen. Adhere to the recommended amperage based on the socket you connect to for optimal and secure charging.

Maximum charging powers in Mode 2 for electric cars using sockets :

  • French domestic power socket (Schuko) : 2,3 KW (10A)
  • Green'up socket : 3,7 kW (16A)

This cable is compatible with all electric vehicles equipped with a Type 2 connector.

Enjoy your EV with the 16A charging cable

If you own a Green'up charging socket or a reinforced charging socket with a charging power of 3.7 kW, this charging cable allows you to recharge faster by selecting the current delivered at 16A from the touchscreen. Make the most of your charging socket and reduce charging time at home by up to two times.

With delayed charging, schedule the recharge of your electric car in 2 hours, 4 hours, or 8 hours. This cable can be used overnight for economical charging during off-peak hours on a suitable charging socket without any risk to the vehicle and without overheating the socket.

Our team has selected the Mode 2 16A charging cable for the quality of materials, safety, and reliability of DUOSIDA brand products.

Technical specifications of the Type 2 cable for 16A charging socket - 3,7 kW

Max. power
3,7 kW
EV connector
Type 2
Connection type
Schuko and chargign socket 16A
IP rating
IP54
Operating temperature
-30 à +50°C
Norm
CE, IEC 62196-2, CEI 62752
Made in
France
Reference
2080-V3-PSE-6C-16-ES, 2080-V3-PSE-8C-16-ES



Download the manual
