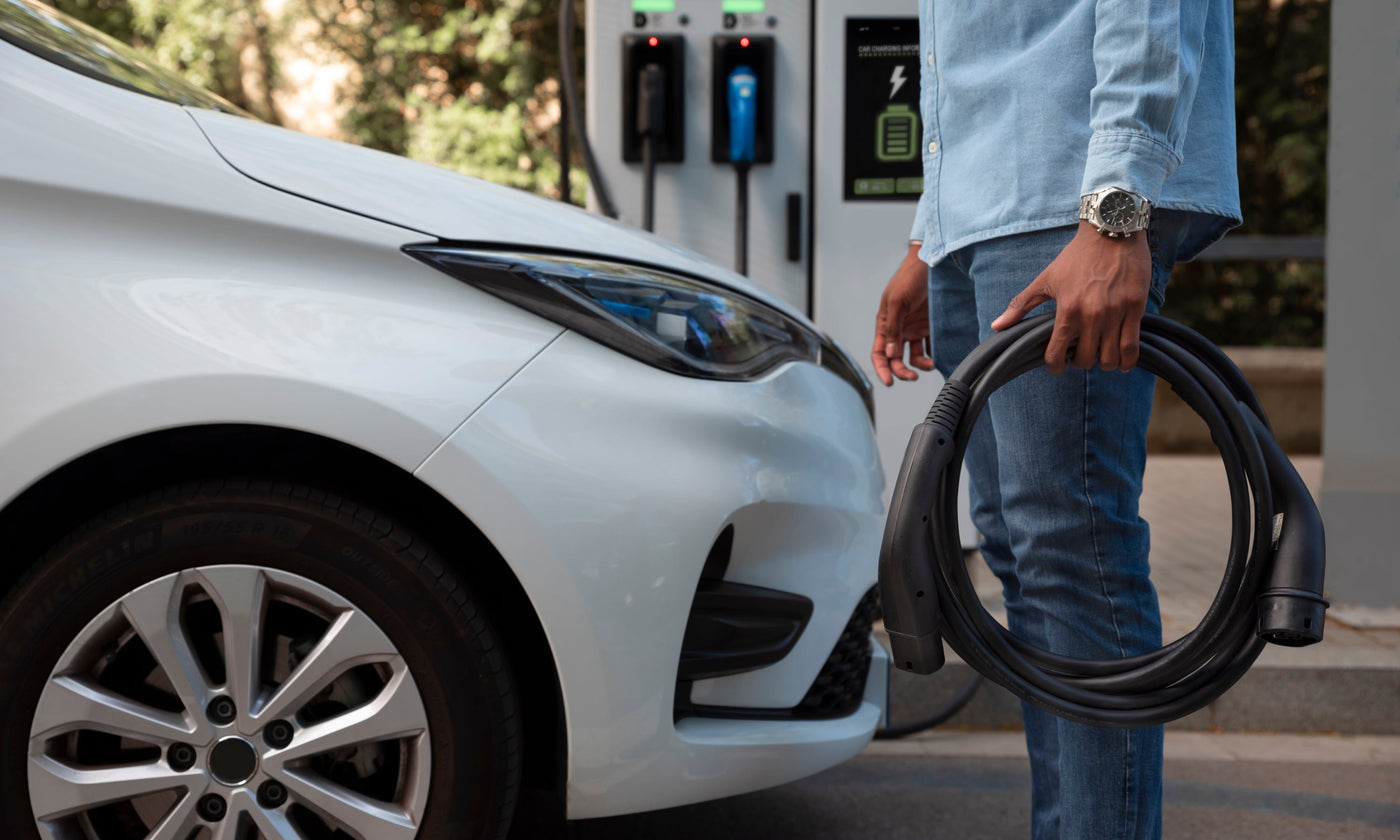

cable recharge mode 3

Mode 3 charging for electric cars

An important aspect of owning an electric car is understanding the various charging modes – especially Mode 3. This term is often used by professionals in the car industry to talk about charging cables for charging stations and can sometimes be confused with purchasing a charging cable for your EV. In this article, we are going to help you come to grips with Mode 3 charging and the various Mode 3 cables available on the market to charge your EV.

The different charging modes

Charging modes refer to charging standards that have been developed by the European Union to ensure compatibility between various types of electric cars and charging points. This standard is used in most European countries. There are 4 charging modes: Mode 1, Mode 2, Mode 3 and Mode 4. Only Modes 2, 3 and 4 are used to charge electric vehicles.

→ Charging in Mode 1

Mode 1 is for charging from a simple domestic socket, which means you have no control over the power rating. This mode is not used for modern EVs.

→ Charging in Mode 2

Mode 2 charging is carried out from a non-dedicated socket with a monitoring device and protection integrated into the cable. In Mode 2, the vehicle charges up slowly at the minimum speed.

→ Charging in Mode 3

Mode 3 refers to the charging method that links the EV to a dedicated socket which allows the charging operation to be monitored. A safety device is integrated into the infrastructure to ensure hazard-free home charging. This charging mode opens the door to what is known as “fast” charging, which is speedier than charging from a simple domestic socket (Mode 2).

→ Charging in Mode 4

This concerns DC charging from a rapid charging infrastructure fitted with a monitoring device and protection systems integrated in the infrastructure.



Puissances de charge en kW par mode de charge

Why is Mode 3 important?

Now that you know more about the various charging modes, we are going to look further into Mode 3, which is the most frequently used mode in the home environment and which you will find at charging stations for electric vehicles (with the exception of rapid DC charging stations).

Charging in Mode 3 is one of the fastest ways to charge an EV. Depending on the size of your car’s battery and the power rating of the charging station, you can charge your EV in as little as 1 hour. Finally, Mode 3 charging is safer than using a common electrical socket to charge your car. Mode 3 charging points have integrated safety features to prevent overloading and overheating, which is a risk inherent in other charging modes.

Mode 3 cables

Mode 3 therefore refers to a type of charging and not to a particular charging cable. To charge in Mode 3 at a charging station, you need to use a charging cable to connect your EV to the charging point. The Mode 3 Type 2 cable is the most commonly used since this is the European standard on both the car side and the charging point side, but other Mode 3 cables are available on the market for other types of EV connectors (Type 1) and other types of charging points (Type 3). The charging cable for AC charging stations is therefore considered to be a Mode 3 charging solution.

cable mode 3 vehicules electirques

Type 2 / Type 2 charging cable Type 2 / Type 1 charging cable Type 3 / Type 2 charging cable Type 3 / Type 1 charging cable

Difference between Mode 3 and Type 3 cables

We tend to confuse "Mode 3 cable" and “Type 3 cable” as the terms are so similar. The term Mode 3 cable refers to the charging mode as seen previously, whereas Type 3 cable refers to the Type 3 connector used to hook up to charging stations equipped with Type 3 connectors. Type 3 cables therefore provide a solution for charging in Mode 3, but are only designed to charge at compatible charging stations fitted with a Type 3 connector.

câble type 3 recharge voiture électrique
Socket for charging point Type 3C

When you own an electric car, you need to know about the various charging modes. Mode 3 charging, also known as AC (alternating current) charging, corresponds to the most widespread type of charging points which you will find in public places throughout Europe. It also a faster and safer means of charging compared to other modes. Make sure that your EV is compatible with Mode 3 charging and locate the charging stations in your vicinity for a practical, efficient charging experience.
To purchase the right cable reference, you need to have more details about your EV model and your charging infrastructure in order to have the right connectors on your charging cable. Just like buying tyres for your car, it is difficult to choose the right Mode 3 cable without this information. To make quite sure you purchase the correct products for your vehicle, you can use the search by vehicle option available on Mister EV.

Our customer service is at your disposal to help you choose the perfect cable for your vehicle in tune with your particular needs.


7 comments


  • bernard

    Faut-il une borne particulière pour les véhicules électriques possédant une batterie réversible ?


  • MISTER EV

    @triphon-VE : Dans tous les cas il faut de l’électronique de pilotage pour la recharge d’un véhicule électrique, que cette dernière soit dans un boitier sur câble pour la recharge mode 2, ou dans la borne pour la recharge mode 3.
    Il n’est donc pas possible de recharger en direct votre véhicule. Une borne ou un câble mode 2 sera donc obligatoire quoiqu’il arrive.


  • triphon-VE

    Bonjour, est il possible de recharger directement en mode 3 ma voiture en triphasé du tableau électrique de la maison avec un cable compatible avec la voiture, ou me faut-il obligatoirement une borne ou box ? le chargeur du véhicule est il autonome pour la recharge ?


  • Guibert

    Vous ne parlez pas Mode triphasé. Moi j’ai un véhicule qui accepte 22kws. quand je recharge sur borne public je charge en 11 kws. Pourtant la borne délivré du 22 kw. Malgré que je suis le seul à occuper la borne
    Il faudrait peut-être un câble triphasé pour mon cas. ?
    ?


  • Mister EV

    @Pernet Si vous cherchez à acheter un câble Mode 3, ce terme fait référence à une méthode de recharge comme indiqué dans notre article et n’est pas assez complet pour trouver votre câble de recharge compatible avec votre véhicule. Pour acheter un câble de recharge, vous aurez besoin des informations suivantes : le type de connecteur côté borne (Type 2, Type 3C), le type de connecteur côté véhicule (Type 2 ou Type 1) et la puissance du câble (7, 11kW ou 22kW). Cela peut sembler complexe, c’est pour cela que vous trouverez les câbles compatibles avec votre véhicule directement sur notre site dans notre rubrique Véhicule.
